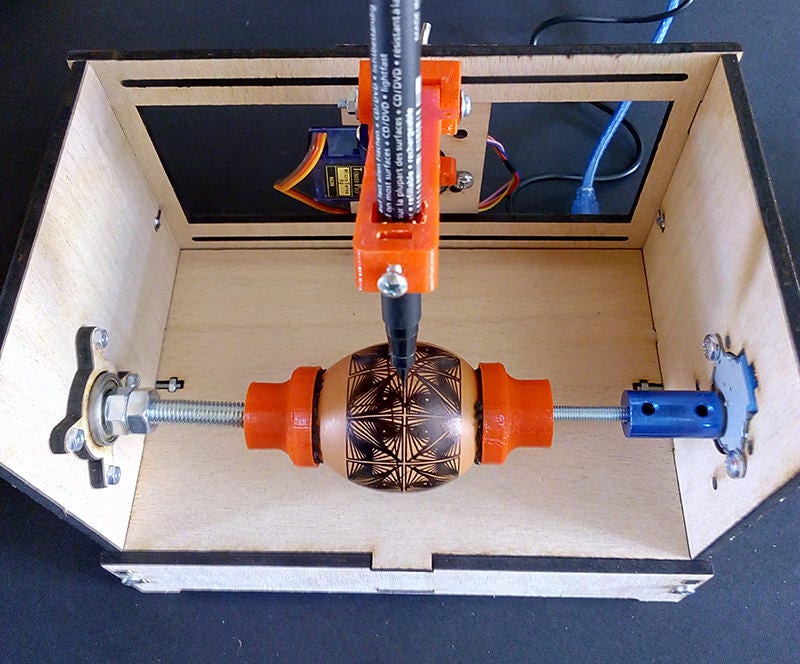

We will need to attach a servo horn to the servo. Just line the parts up so you can see trough the hole and push the screw in and attach it on the other side with the M3 nut. The hinge that will lift up the pen is created by the M3 30mm screw. I also added a parts list for this specific part and split it up into multiple steps: But don't worry it is actually pretty easy and I have token a lot of pictures. This is actually a crucial part of the machine because this the part that might create a lot of if not attached correctly. It is pretty small so if you have big hands, good luck! This part will hold the pen, make the pen go up and down and later on we will attach a second motor that will make the pen rotate. The first part that we will assemble is the the smallest and trickiest part to build. So short summary: use PLA and 20% infill. Supports? For some parts you may need to use some sort of support material, but I think for 70% of the parts, you can just avoid them by orienting them in a proper way.Īlso make sure you keep the parts safe and be careful with them. This part depends on the type of material that you use. This doesn't really matter, but the lower you go, the better your print looks and also the longer your print time will take.Īs my temperature, I used 200° C on my hot end and my bed was 55° C. There won't be many vibration like in a CNC machine for example so I think 20% is just fine.Īs my layer height, I used 0.2 mm. This is not considered super high, but it will get the job done. The infill I used was 20% for every part. So if you have some spare PETG, use that. You could use PETG that bends more and is harder to break, but I don't think this advantage is worth the extra money. PLA is not heat resistant, but there won't be much heat dissipated by this machine. I would recommend PLA because it is kind of bend resistant.
To start I want to talk about the filament you should use. The parts have to be strong enough so nothing bends or brakes and interferes with the quality of the image on our egg. The 3D printed parts are very imported in this project, so make sure you use the right settings.
Eggbot art designs software#
When I have to explain this software to someone, I just call it Minecraft for adults.įor the few that are interested in the design, you can find it in the 3D-printing step. I don't call myself a pro, but I am very happy with the result I got.
Eggbot art designs how to#
It does take a little bit of time to learn how to work with this software, but once you get the hang of it, it is as easy as it gets. Everything just works like it should work.
Eggbot art designs free#
It is not only free for students and hobbyists, but it is also well build. I think that Autodesk Fusion 360 is the best software for creating these type of projects. I did make some changes, but it looks almost the same. What I want to mention is that my Pen Holding mechanism is based on Okmi's design. But if you are bothered by that, feel free to make a remix and share it with us. I also tried to use as many parts as I had laying around, so if you see a weird choice of hardware, thats why. So I decided to take on the challenge and I tried to create a sub 100 dollar Eggbot. Their Eggbot is a well worked out piece of art, but the price is just ridiculous at 325 dollars.
Eggbot art designs pro#
I was inspired by the EggBot Pro by EvilMadScientist. I have spended many hours in fusion 360 designing this thing.
